Hardware-in-the-Loop Simulation Kit

Hardware-in-the-Loop Simulation Kit

1. Product Introduction

The Hardware-in-the-Loop (HIL) simulation kit is an experimental equipment set developed by the Feisi Lab, a subsidiary of Beijing Zhuoyi Intelligent Technology Co., Ltd., specifically designed for the Hardware-in-the-Loop (HIL) simulation testing phase of unmanned aerial vehicle (UAV) systems. This simulation kit not only includes key components such as the Pixhawk 6X mini flight controller, WFLY remote controller, and USB-TTL module (simulating telemetry communication), but also comes with a rich set of experimental examples, greatly enriching the application scenarios and scope of use of the kit. This kit is particularly suitable for fields such as unmanned system development and testing, as well as UAV education and teaching, providing comprehensive experimental guidance and hands-on practice opportunities from foundational to advanced levels. Through this HIL simulation kit, users can test and validate UAV flight control systems in a safe and controllable environment, thereby ensuring the stability and reliability of their performance before deploying the UAVs in real-world applications.

2. Core Advantages & Research Directions

  • Seamlessly compatible with the RflySim toolchain, enabling high-fidelity software- and hardware-in-the-loop simulation;
  • Provides a wealth of experimental examples to help users quickly understand the use of the simulation kit and accelerate early-stage algorithm design and testing workflows;
  • All experimental examples are open-source, supporting user-driven secondary development to adapt to specific application requirements and test scenarios;
  • Provides comprehensive documentation and technical support to help users get started quickly and resolve technical challenges encountered during use.

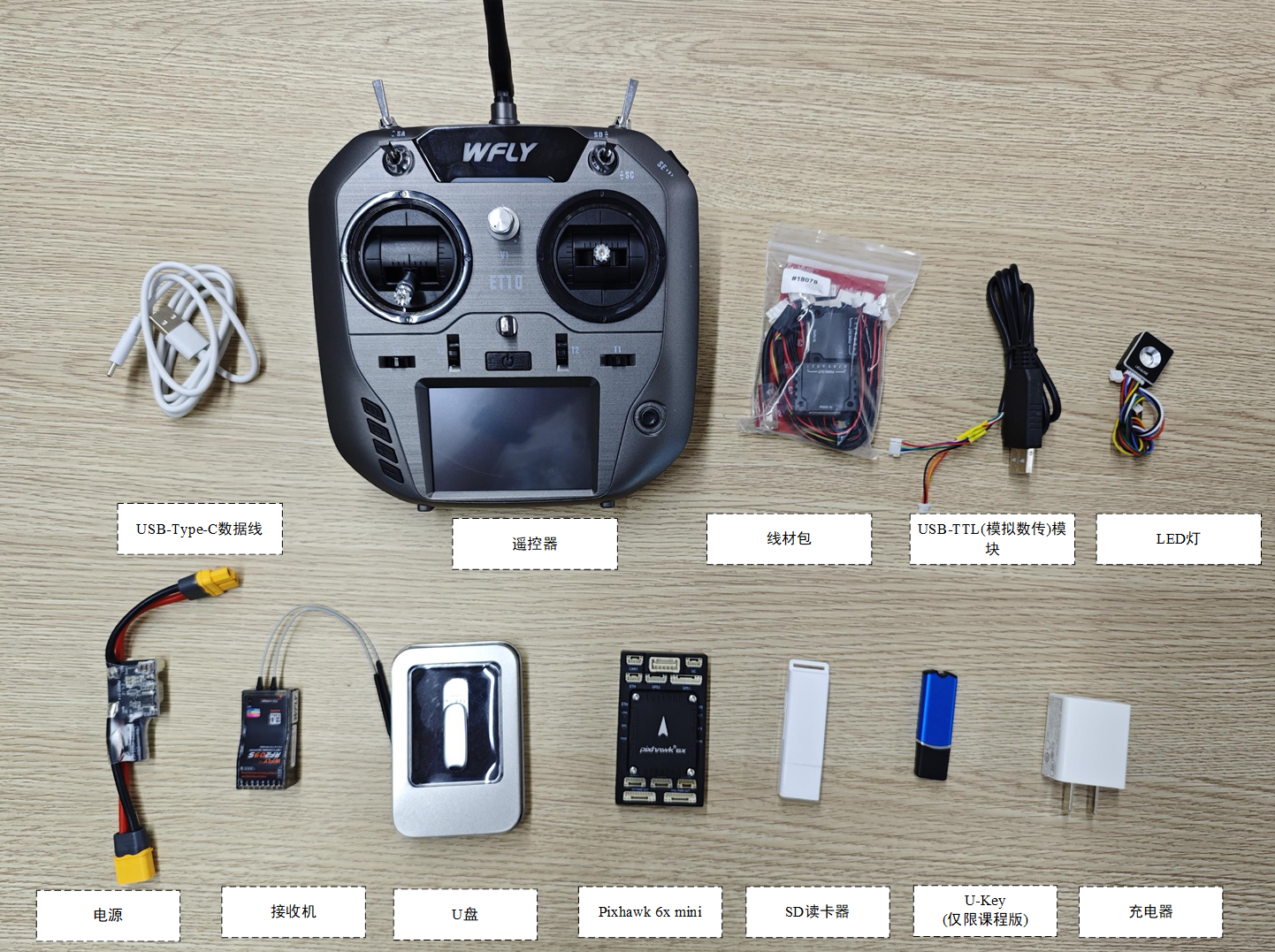

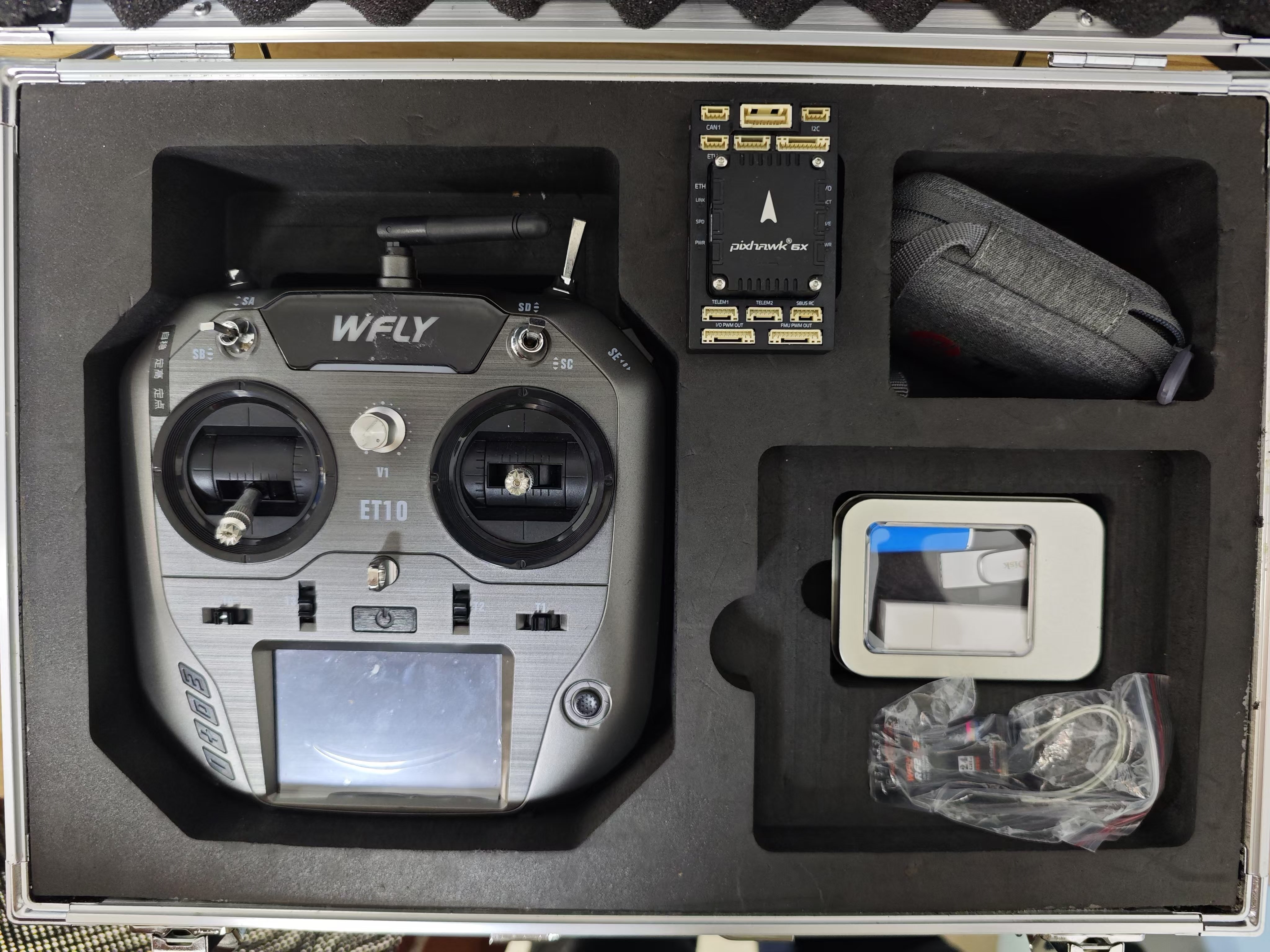

3. Kit Contents

🔗 For more detailed documentation, please refer to the link 🔗
