QGroundControl

QGroundControl is the default ground control station software adopted by the RflySim toolchain, primarily responsible for mission planning, status monitoring, parameter configuration, and flight mode switching. Within the overall system, it serves as the interface connecting the “operator” and the “flight controller,” rather than handling dynamics solving or 3D rendering itself.

Software Positioning

Within the RflySim usage workflow, QGroundControl can be best understood as follows:

  • It is not a simulator
  • It is not a 3D visualization software
  • It is not an algorithm execution environment
  • It is the interface for flight controller configuration, mission planning, and flight monitoring

If CopterSim enables the aircraft to “move,” and RflySim3D enables you to “see it,” then QGC enables you to “control it.”

Role in RflySim

The typical responsibilities of QGC in RflySim include:

Responsibility Description
Status Monitoring Real-time telemetry display: position, attitude, velocity, battery, flight mode, etc.
Mission Planning Waypoint planning, mission upload, mission execution
Parameter Configuration PX4 parameter tuning and sensor calibration
Mode Switching Manual, Mission, Return, Offboard, etc.
Firmware Operations Firmware upgrade, device identification, and some customized flashing workflows

For most users, QGC serves as the “flight controller-side entry point,” not the “entire simulation entry point.”

Core Software Interface Preview

Typical Usage Workflow

SITL Workflow

The most common experimental workflow is:

  1. Launch SimCreate or BAT
  2. Start CopterSim + PX4 SITL + RflySim3D + QGC
  3. Monitor telemetry and flight mode in QGC
  4. Perform arming, mode switching, mission upload, and other operations

HITL Workflow

In hardware-in-the-loop scenarios, QGC functions more like a ground station in real-world experiments:

  1. Connect to Pixhawk via serial port or network
  2. Monitor real flight controller status
  3. Configure SYS_ID, sensors, and mission modes
  4. Collaborate with CopterSim to perform hardware-software integration validation

Core Features

Real-Time Monitoring

QGC can continuously display:

  • Position
  • Attitude
  • Velocity
  • Battery
  • GPS status
  • Flight mode

This step is extremely critical during debugging, as it is often the first observation point for determining whether an issue lies on the flight controller side or the simulation side.

Mission Planning

For PX4-based mission-oriented experiments, one of QGC’s core strengths is map-based waypoint planning. It is suitable for:

  • Line patrol flights
  • Area coverage missions
  • Aerial mapping and photogrammetry
  • Automated inspection
  • Return-to-home and failsafe validation

Parameter Tuning

Pre-tuning parameters during simulation significantly reduces risks in subsequent HITL and real-flight testing.

Flight Mode Management

Common modes include:

  • Manual
  • Altitude
  • Position
  • Hold
  • Mission
  • Return
  • Land
  • Offboard

Among them, Offboard is the most commonly used entry mode when external algorithms take over control.

Mission Planning and Upload

From the RflySim usage perspective, mission planning consists of three main steps:

1. Define the Mission on the Map

This includes:

  • Takeoff point
  • Waypoint sequence
  • Altitude and velocity settings
  • Camera or payload trigger actions

Ground Station Mission Planning

2. Upload to the Flight Controller

This step is performed via MAVLink. Users do not need to memorize all message details, but should understand that mission upload is not “finish drawing and done”—it is a process involving confirmation and validation.

3. Start and Monitor Mission Execution

During mission execution, monitor:

  • Current flight mode
  • Safety constraints
  • Return-to-home and geofence settings
  • Real-time telemetry

For course experiments and validation tests, this step effectively verifies whether the mission system operates as expected.

Typical Relationships in RflySim

```text PX4 SITL / Pixhawk <-> MAVLink QGroundControl <-> User

In the complete toolchain, QGC frequently collaborates with the following components:

  • PX4 SITL
  • Pixhawk
  • CopterSim
  • Python / ROS external control programs

Communication Methods

Common methods include:

  • UDP
  • TCP
  • Serial port
  • MAVLink message flow

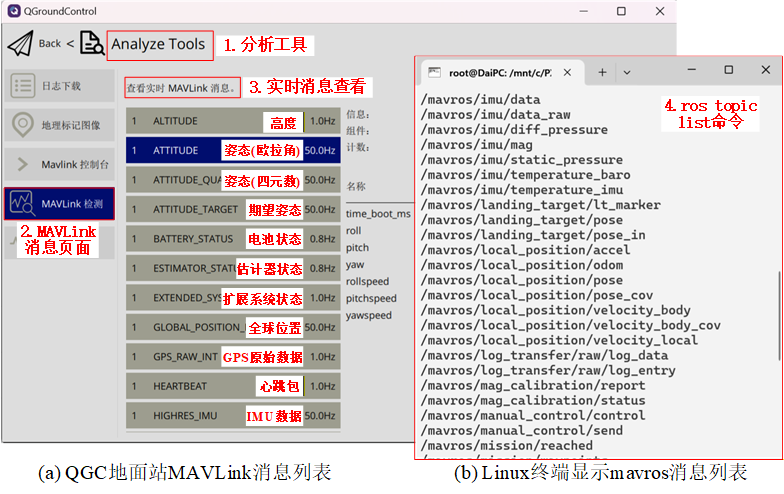

QGC MAVLink Messages

In simulation environments, UDP and MAVLink are more commonly used; in HITL scenarios, serial link connections become more critical.

Key User-Oriented Understanding

To determine whether QGC is functioning properly, you typically only need to check three items:

  1. Whether it is connected to the correct target
  2. Whether heartbeat and telemetry data are continuously received
  3. Whether mode switching and mission uploading are working normally

Multi-Vehicle Configuration

In multi-vehicle simulation, QGC primarily assumes the role of “identifying multiple vehicles and managing them individually.”

Most Critical Parameter

SYS_ID must be unique.

If multiple Pixhawk units or multiple flight control links have conflicting IDs, subsequent operations—including:

  • Telemetry display
  • Mission distribution
  • Mode switching
  • Parameter modification

—will all become chaotic.

Usage Recommendations

  • Plan ID assignment rules in advance before multi-vehicle setup
  • First ensure each vehicle can be individually identified
  • Then consider batch missions and swarm visualization

Usage Recommendations in RflySim

Clarify Responsibility Boundaries First

Many beginners attribute all issues to QGC. In reality:

  • Not seeing the aircraft is usually not a QGC issue
  • Missing imagery is also not a QGC issue
  • Dynamics instability is typically unrelated to QGC

QGC is better suited for verifying:

  • Whether the flight controller is online
  • Whether the current flight mode is correct
  • Whether parameters have been configured successfully
  • Whether missions have been uploaded and executed successfully

Understanding Offboard Mode

Many external control experiments do not involve direct control via QGC; instead:

  1. Use QGC to arm the vehicle and switch to the appropriate mode
  2. Let Python / ROS / Simulink programs take over control

In this case, QGC functions more like a status monitoring and safety entry point, rather than the primary controller.

Customized QGC

The RflySim QGC link also includes several customized capabilities, such as:

  • Shared-memory image-related features
  • Custom firmware download and flashing procedures
  • Tighter integration and coordination with the RflySim toolchain

Therefore, it should not be viewed solely as a “standard QGroundControl tutorial.”

Frequently Asked Questions

Issue More Likely Cause Troubleshooting Approach
QGC cannot connect to simulation PX4 / MAVLink link not established First check heartbeat from SITL or flight controller side
Only one vehicle recognized in multi-vehicle setup SYS_ID conflict First uniformly plan ID assignments
Mission fails to upload Current flight controller state or mission content abnormal First perform a simple mission upload test
Parameter changes have no effect Parameters not actually sent or require restart to take effect Confirm based on flight controller status
Image functionality abnormal Not a standard QGC issue, likely a customized link issue Troubleshoot back to corresponding example or interface link
