HIL16CtrlsNorm Module Documentation

Toolbox: RflySim APIs

Introduction

One-sentence Description: This module is used in RflySim hardware-in-the-loop (HIL) simulation to send 16-dimensional normalized control signals generated by Simulink to CopterSim, supporting mode switching between custom Simulink controllers and native PX4 controllers.

This module is a core API component in the RflySim toolchain for hardware-in-the-loop simulation development with custom controllers, primarily designed for control signal exchange in Simulink-based controller development scenarios. Developers can connect the 16-dimensional normalized control signals output by their custom algorithms to this module, which will forward the signals to the CopterSim DLL physics simulation model, enabling the custom controller to control the drone’s dynamics model.

The module supports configuration for automatic arming, PX4 output blocking/unblocking, and mode switching, and can cooperate with the PX4 flight controller to perform HIL simulation: when the enable input is valid, the drone is controlled by the custom Simulink controller; when the enable input is invalid, it automatically switches to the native PX4 Loiter mode to maintain hover. This facilitates developers in verifying the control performance of their custom controllers during simulation, interfacing CopterSim’s dynamics simulation with the PX4 flight controller, and simultaneously supports real-time visualization simulation via RflySim3D.

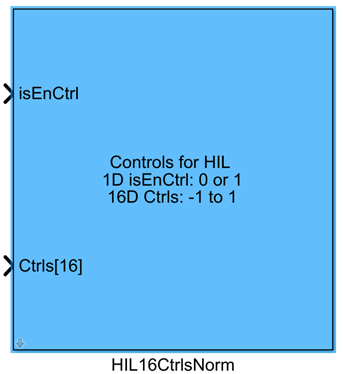

Port Descriptions

Input Ports

Port Name	Data Type	Dimension	Description
isEnCtrl	boolean	1×1	Enable control signal input flag. When input is true, the normalized control signal provided at the input is sent; when false, a zero control signal is sent.
CtrlS	double	1×16	16-dimensional normalized control signal, ranging from -1 to 1, used for HIL simulation.

Output Ports

Port Name	Data Type	Dimension	Description
CtrlS_out	double	1×16	Processed 16-dimensional normalized control signal, to be sent to the inPWM interface of the CopterSim DLL model.

Parameter Configuration

The following parameters can be configured in the Mask dialog box opened by double-clicking the module:

Parameter Name	Type	Default Value	Optional Values / Range	Description
Auto arm	bool	false	true/false	When checked, the module automatically sends an arming command when control is enabled.
Auto block PX4	bool	false	true/false	When checked, the module automatically blocks PX4 output when control is enabled, allowing the Simulink controller to control the vehicle.
Auto Loiter	bool	false	true/false	When checked, the module automatically unblocks PX4 output and switches PX4 to automatic Loiter mode when control is disabled, maintaining the vehicle in hover.
Sample Time(s)	double	0.01	>0	Module sampling time in seconds.

Parameter Setting Descriptions

Auto arm

When this option is checked, the module automatically sends an arming command to the flight controller when isEnCtrl is true (control enabled), eliminating the need for users to handle arming logic separately and simplifying the takeoff process in HIL simulation.

Auto block PX4

This parameter enables switching between Simulink user controllers and native PX4 controllers: when checked, if isEnCtrl is true, the module sends a signal to block PX4 output, allowing the vehicle to be fully controlled by the user controller built in Simulink; if unchecked, the enable state of PX4 output remains unchanged.

Auto Loiter

This parameter ensures vehicle safety when switching back to PX4 control: when checked, if isEnCtrl is false (user control disabled), the module automatically unblocks PX4 output and commands PX4 to switch to Loiter (hover) mode, ensuring stable hover and avoiding失控 risks during mode transitions.

Sample Time(s)

This parameter specifies the sampling period for sending control signals by the module and must match the Simulink simulation step size. The default value of 0.01 s corresponds to a 100 Hz control frequency, satisfying the requirements of most drone controllers.

Module Characteristics

Characteristic	Value
Supported Data Types	double, single
Direct Feedthrough	Yes
Sample Time	Discrete
Code Generation Support	No

Data Communication Protocol

The module communicates with CopterSim via UDP, sending normalized control signals to CopterSim. By default, it follows the communication port rules of the RflySim platform, with the data format consisting of 16 double-type normalized control values plus configuration command data.

Related Modules

Module Name	Description
getStatesFromCopterSim	Retrieves vehicle state data from CopterSim
setPX4OffboardNorm	Sends normalized offboard control commands to PX4
HIL8CtrlsNorm	Sends 8-dimensional normalized HIL control signals to CopterSim
VehicleCtrlRaw	Sends raw PWM control signals to CopterSim for HIL simulation

Usage Example

For related usage examples, please refer to the following path:

``` [RflySim Installation Path]/RflySimAPIs/5.RflySimFlyCtrl/0.ApiExps/16.CtrlsSingalsAPI/Readme.pdf

Please refer to Readme.pdf in the path above for complete example descriptions and operational steps.

Notes and Common Issues

• Initialization Sequence: This module relies on CopterSim completing the HIL simulation environment initialization before it can send control signals normally. Ensure that CopterSim has finished hardware-in-the-loop connection configuration before starting the simulation; otherwise, control signals may fail to be correctly transmitted to the PX4 flight controller.
• Normalization Range Constraint: The input 16-dimensional control signal CtrlS[16] must be constrained to the range [-1, 1]. Even the throttle channel must comply with this range; exceeding it will cause CopterSim to misinterpret the control signal, leading to abnormal flight control. Control signal ranges must match the specific aircraft type: for multirotors, control signals are typically constrained to [0, 1]; for fixed-wing aircraft, the full range [-1, 1] may be used.
• Function Option Logic Matching: After checking Auto Loiter, when isEnCtrl is set to false, the module automatically switches PX4 to Loiter hover mode. Do not send additional mode-switching commands via other modules, as this may cause mode command conflicts and result in abnormal flight controller operation. If full control by the Simulink controller is required throughout, do not enable Auto Loiter.
• Sample Time Matching: The module’s Sample Time(s) parameter must match the overall Simulink model step size and CopterSim’s simulation step size. Excessive step size mismatches can cause control signal transmission timing disorders, resulting in control delays or signal packet loss.
• Enable Signal Logic: When isEnCtrl is false, the module outputs all-zero signals. If Auto block PX4 is enabled, PX4 output will also be blocked simultaneously. Do not leave the simulation idle with isEnCtrl set to false, as this may cause the aircraft to lose control and crash.

Changelog

• v4.24 (2024-08-07): Initial release. Implements sending 16-dimensional normalized control signals to CopterSim’s hardware-in-the-loop simulation, supporting automatic arming, PX4 output blocking, and automatic Loiter mode switching configuration.
