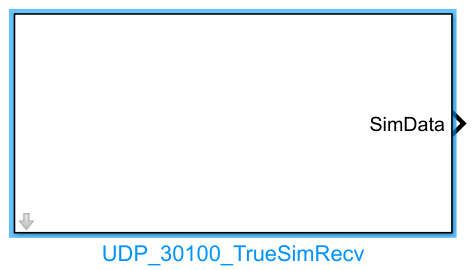

UDP_30100_TrueSimRecv Module Documentation

Toolbox: RflySim Model

Introduction

One-sentence Description: Receives and parses complete state ground-truth data from vehicle model simulations by listening on UDP ports in the series 30101++2.

This module belongs to the RflySim Model interface library and serves as the core communication module in the RflySim toolchain for acquiring high-precision simulation ground-truth states. It is primarily used in development scenarios requiring access to the actual simulated vehicle state—such as external control and algorithm validation. Based on the configured aircraft ID, the module listens on the corresponding UDP port, receives encapsulated data packets sent from external vehicle models or simulation environments, and parses them to output a full set of vehicle state ground-truth data, including position, velocity, attitude, acceleration, angular velocity, GPS information, actuator status, and more.

This module is typically used in conjunction with CopterSim and RflySim3D: when users build custom vehicle models or external control algorithms in Simulink, this module receives the true vehicle state data from the TrueSim simulation environment, parses it, and makes it directly available to algorithm modules within Simulink, enabling closed-loop simulation. It also supports multi-vehicle simulation scenarios by distinguishing vehicle state data via aircraft ID.

Port Descriptions

Input Ports (Inputs)

This module has no input ports.

Output Ports (Outputs)

Port Name	Data Type	Dimension	Description
checksum	double	1×1	Data checksum; valid value is 123456789, used to indicate data validity
copterID	double	1×1	Aircraft ID number corresponding to the output data
vehicleType	double	1×1	Vehicle type ID, corresponding to the ClassID in the RflySim3D UE scene XML
reserv	double	1×1	Reserved flag bit, reserved for indicating features such as collision or large map
VelE	double	1×3	Vehicle velocity in the North-East-Down (NED) coordinate frame, unit: m/s
AngEuler	double	1×3	Roll, pitch, and yaw Euler angles, unit: radians
AngQuatern	double	1×4	Attitude quaternion vector, order: w x y z
MotorRPMS	double	1×8	Actuator status; for rotorcraft, corresponds to motor RPM, unit: RPM
AccB	double	1×3	Vehicle acceleration in the Body FRD (Front-Right-Down) coordinate frame, unit: m/s²
RateB	double	1×3	Vehicle angular velocity (p/q/r) in the Body FRD coordinate frame, unit: rad/s
runnedTime	double	1×1	Simulation timestamp; starts at 0 at simulation initialization, unit: seconds
PosE	double	1×3	Vehicle position in the North-East-Down (NED) coordinate frame, unit: meters; z-axis positive downward
PosGPS	double	1×3	Vehicle GPS coordinates, order: latitude (degrees), longitude (degrees), altitude (meters); altitude positive upward

Parameter Configuration

The Mask dialog box, opened by double-clicking the module, allows configuration of the following parameters:

Parameter Name	Type	Default Value	Available Values/Range	Description
CopterID	int	1	1~255	Target vehicle ID whose data is to be listened to and read
Sample Time (s)	double	0.01	>0	Module sampling time, unit: seconds

Parameter Setting Description

CopterID

The ID number of the target vehicle. The module automatically listens on the corresponding UDP port 30101 + 2 * (CopterID - 1) and reads only the simulation ground-truth data matching the specified ID.

Sample Time (s)

The sampling interval for UDP data retrieval by the module. It should be set to match the simulation step size and data transmission frequency. For typical multirotor simulations, the default value of 0.01 seconds is sufficient.

Module Characteristics (Block Characteristics)

Characteristic	Value
Supported Data Types	double, single, int32
Direct Feedthrough	No
Sample Time	Discrete
Code Generation Support	No

Data Communication Protocol

This module communicates via UDP. For a specified aircraft ID, the local UDP port to listen on is 30101 + 2 * CopterID.

The received data packet format is an encapsulated netDataShort structure, defined as follows:

typedef struct _netDataShort {
    uint32_t tg;          // Target port identifier
    int len;              // Total length of the transmitted structure, fixed at 200 bytes
    char payload[192];    // Payload; the first 152 bytes contain SOut2Simulator structure data, remaining 40 bytes reserved
}netDataShort;

Payload structure format for SOut2Simulator simulation ground truth:

Field	Type	Quantity	Description
checksum	int	1	Valid data checksum, fixed value: 123456789
copterID	int	1	Aircraft ID number
vehicleType	int	1	Vehicle type ID, corresponding to the ClassID in the RflySim3D UE scene XML
reserv	int	1	Reserved flag bit, reserved for collision and large-map identification
VelE	float	3	Velocity in the North-East-Down (NED) coordinate system, unit: m/s
AngEuler	float	3	Roll/Pitch/Yaw Euler angles, unit: rad
AngQuatern	float	4	Attitude quaternion, order: w x y z
MotorRPMS	float	8	Actuator status: rotor speed for rotorcrafts, unit: RPM
AccB	float	3	Acceleration in the Body FRD (Front-Right-Down) coordinate system, unit: m/s²
RateB	float	3	Angular rate (p, q, r) in the Body FRD coordinate system, unit: rad/s
runnedTime	double	1	Timestamp: starts at 0 at simulation initialization, unit: s
PosE	double	3	Position in the NED coordinate system, Z-axis positive downward, unit: m
PosGPS	double	3	Latitude/Longitude/Altitude: latitude and longitude in degrees, altitude in meters (positive upward)

Full data decoding format: 4i 24f 7d, total data length: 168 bytes.

Related Modules

Module Name	Description
UDP_30100_ExtCtrlSend	Sends external control commands externally, corresponding to UDP port series 30100
MAVLinkRecv	Receives UAV state data in MAVLink protocol format
MAVLinkSend	Sends control command data in MAVLink protocol format

Usage Example

For related usage examples, please refer to the following path:

[RflySim Installation Path]/RflySimAPIs/4.RflySimModel/0.ApiExps/3.ExtCtrlAPI/2.ExtCtrlAPI-UDP30100/Readme.pdf

Please refer to Readme.pdf in the above path for complete example descriptions and operational steps.

Notes and Common Issues

• Initialization Sequence: This module relies on the RflySim3D visualization engine to send UDP ground truth data. The RflySim3D simulation environment must be started first, and vehicle model initialization must be completed before launching the Simulink simulation; otherwise, the module may continuously fail to receive valid data.
• CopterID Matching: The module automatically listens on the port corresponding to the configured CopterID (port = 30101 + 2 * (CopterID - 1)). The CopterID must match the target vehicle ID sending simulation ground truth in RflySim3D; otherwise, ground truth data for the corresponding vehicle cannot be received.
• Coordinate System and Units: In the output ground truth, PosE uses the NED coordinate system with Z-axis positive downward; PosGPS uses degrees for latitude/longitude and meters for altitude (positive upward). Users must pay attention to coordinate system and unit conversions when using the output data to avoid logical errors.
• Checksum Verification: The module only parses data packets with a checksum of 123456789. If received data is all zeros, verify whether the sender correctly sets the checksum to ensure data validity.
• Sample Time Matching: The module’s Sample Time (s) must match the output frequency of the simulation ground truth from the sender. It is recommended to set it identical to the sender’s frequency to avoid data packet loss or repeated reads.
• Firewall Interception: This module communicates via local UDP ports. If data reception consistently fails, check whether the operating system firewall is blocking MATLAB/Simulink’s UDP network access permissions.

Changelog

• v4.1.0 (2024-01-15): Initial release. Implements listening on UDP port series 30101 + 2 * n to read vehicle model simulation ground truth, supporting multi-vehicle ID configuration and customizable sample time settings.
