RePX4Block Module Documentation

Toolbox: RflySim APIs

Introduction

One-sentence Description: This module enables online dynamic masking of different output layers of PX4, supporting real-time switching between PX4’s native control outputs and user-defined controls in both simulation and real-flight scenarios.

This module belongs to the RflySim APIs library and serves as the PX4 custom control extension interface provided by the RflySim toolchain. It is automatically integrated into the PX4 side via the one-click firmware deployment script. The module works in conjunction with CopterSim and PX4 to perform software-in-the-loop (SIL), hardware-in-the-loop (HIL) simulation, and real-flight control. It transmits user-defined control configurations to PX4, and the resulting control outputs are delivered to CopterSim’s DLL model interface, enabling visualization and simulation within RflySim3D.

The module supports four masking modes to accommodate diverse development needs: it can fully take over PX4’s motor/servo output layer, replace only the force and torque control layer of PX4’s native control, replace custom RC input signals to prevent signal conflicts and jitter, and is compatible with various vehicle types including multirotors, fixed-wing aircraft, and ground vehicles. It also supports special ESC protocols such as DShot, making it suitable for typical scenarios involving the development of custom flight control algorithms and the extension of specialized control functionalities.

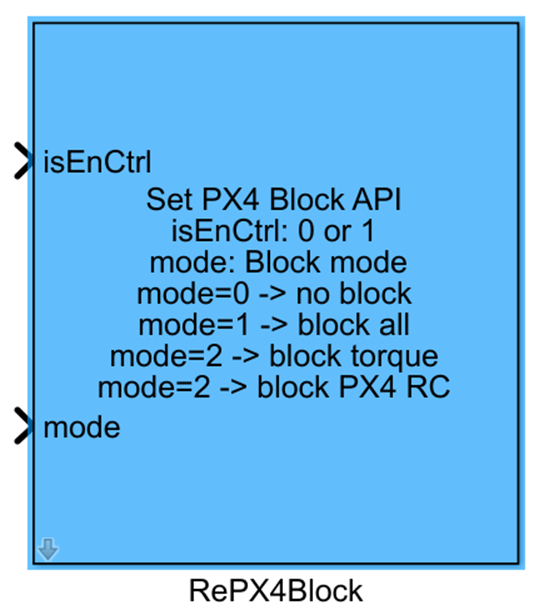

Port Descriptions

Input Ports

Port Name	Data Type	Dimension	Description
isEnCtr	boolean	1×1	Control enable input. When set to true, the custom masking mode is enabled and operates according to the configuration of the mode port; when false, custom masking is disabled.
mode	uint8	1×1	Masking mode selection input. Different numeric values correspond to different masking operation modes.

Output Ports

Port Name	Data Type	Dimension	Description
CtrlS	double	1×16	Control signal output, which will be sent to the inPWM interface of CopterSim’s DLL model.

Parameter Configuration

The following parameters can be configured in the Mask dialog box opened by double-clicking the module:

Parameter Name	Type	Default Value	Optional Values / Range	Description
Sample Time(s)	double	0.001	>0	Module sampling time, determining the simulation computation period.

Parameter Setting Description

Sample Time(s)

This parameter defines the update interval for the module’s output signals, in seconds. Typically, it should be set according to the flight controller’s control cycle; the default value of 1 ms is suitable for most real-time simulation scenarios.

Mode Descriptions

The module supports four operational modes:

• Mode 0 (0): No masking mode. PX4 receives its native control outputs normally: actuator_outputs (for SIL/HIL simulation) and actuator_controls_0 (force and torque interface), preserving the standard motor control logic.
• Mode 1 (1): Full masking mode. During SIL/HIL simulation, PX4 no longer receives actuator_outputs; instead, it receives the actuator_outputs_rfly message, which must be published by the HIL16CtrlsPWM or HIL16CtrlsNorm modules. In real-flight scenarios, the underlying motor/servo control code of PX4 is masked, and control outputs from the PWM_output and Aux_output modules are used instead. Special protocols such as DShot are not supported.
• Mode 2 (2): Intermediate force and torque layer masking mode. Supported in both SIL/HIL simulation and real-flight scenarios. PX4 no longer receives actuator_controls_0; instead, it receives force and torque control commands from actuator_controls_rfly, which must be sent by the TorqueThrustCtrls module. This mode supports special ESC protocols such as DShot and UartESC, and is compatible with multirotors, fixed-wing aircraft, ground vehicles, and other vehicle types.
• Mode 3 (3): RC signal masking mode. The manual_control_setpoint message sent by PX4 is masked, and RC signals can be replaced via the RCOverCtrlAPI interface to prevent control jitter caused by conflicts between Simulink-generated RC signals and PX4’s native signals.

Module Characteristics

Characteristic	Value
Supported Data Types	double, single, uint8, boolean
Direct Feedthrough	Yes
Sample Time	Discrete
Code Generation Support	No

Data Communication Protocol

This module transmits control commands and mode settings to CopterSim’s DLL model via interfaces; it does not involve independent external network communication.

Related Modules

Module Name	Description
HIL16CtrlsPWM	Publishes 16-channel PWM control outputs, used in conjunction with Mode 1 (full masking mode).
HIL16CtrlsNorm	Publishes normalized 16-channel control outputs, used in conjunction with Mode 1 (full masking mode).
TorqueThrustCtrls	Sends force and torque control commands, used in conjunction with Mode 2 (force and torque layer masking mode).
RCOverCtrlAPI	Replaces PX4’s RC signals, used in conjunction with Mode 3 (RC signal masking mode).
PWM_output	Outputs PWM control signals in real-flight scenarios, used in conjunction with Mode 1 (full masking mode).
Aux_output	Outputs auxiliary channel control signals in real-flight scenarios, used in conjunction with Mode 1 (full masking mode).

Usage Example

For relevant usage examples, please refer to the following path:

``` [RflySim Installation Path]/RflySimAPIs/5.RflySimFlyCtrl/2.AdvExps/e0_AdvApiExps/5.RepPX4Func/Readme.pdf

Please check Readme.pdf in the path above for complete example descriptions and operational steps.

Notes and Common Issues

• Initialization Sequence: This module relies on a custom interface of the PX4 firmware, which only functions properly after the corresponding firmware has been deployed via the RflySim one-click installation script. Before use, please confirm that the firmware has been correctly deployed; otherwise, the module’s functionality will not work.

• Mode Configuration Matching: Different modes correspond to different usage scenarios—please avoid mixing configurations:

• Mode1 (Full Shielding Mode): Not supported for real-flight scenarios; does not support special ESC protocols such as DShot.
• Mode2: Required when using special ESC protocols or force/torque-level control.

• Mode3: Mandatory when replacing the remote control signal to avoid control signal conflicts.

• Sample Time Matching: Set this module’s Sample Time to match the Simulink control algorithm step size to prevent abnormal control command updates, control jitter, or output failure caused by mismatched sampling intervals.

• Complementary Module Requirements: Different modes require specific complementary modules:

• Mode1 (simulation scenario): Requires the HIL16CtrlsPWM or HIL16CtrlsNorm module to publish control messages;
• Mode1 (real-flight scenario): Requires the PWM_output and Aux_output modules for output;
• Mode2: Requires the TorqueThrustCtrls module to send force/torque control commands;

• Mode3: Requires the RCOverCtrlAPI interface. Omitting the corresponding module will result in output failure.

• Signal Conflict Issue: When using Mode3 to replace the remote control signal, the module’s shielding function must be enabled; otherwise, the custom remote control signal sent by Simulink will conflict with the native PX4 signal, causing control output jitter or even loss of control.

Changelog

• v4.1.0 (2024-08-07): Initial release of the RePX4Block online module for shielding PX4 outputs. Supports 4 distinct shielding modes and enables customized PX4 output control for both simulation and real-flight scenarios.
