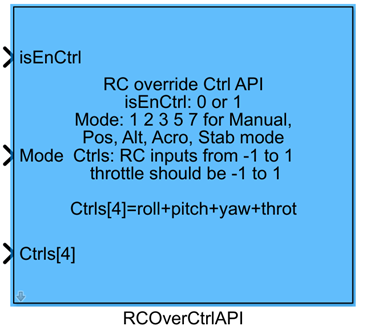

RCOverCtrlAPI Module Documentation

Toolbox: RflySim APIs

Introduction

One-sentence Description: This module sends custom manual control signals to PX4, overriding the original remote controller manual input, and supports flexible configuration of Offboard control modes.

This module belongs to the RflySim APIs toolchain and is primarily used to retransmit the manual_control_setpoint message during Simulink-based custom controller development, thereby overriding PX4’s native manual control signals. It supports customizable selection of Offboard attitude control channels and provides features such as automatic arming, PX4 output blocking, and automatic Loiter mode switching. When the isEnCtrl input is true, the module enables Simulink custom control and enters Offboard mode; when false, it automatically switches PX4 to Loiter mode to maintain hover, ensuring simulation safety.

This module is typically used in custom manual control development and drone control algorithm simulation validation scenarios. It works with CopterSim to perform flight control dynamics simulation, interfaces with RflySim3D for visualization, and exchanges control messages with the PX4 flight controller via the MAVLink protocol. It supports customizable switching among manual, altitude-hold, position-hold, acro, and stabilize control modes.

Port Descriptions

Input Ports

Port Name	Data Type	Dimension	Description
isEnCtrl	boolean/double	1×1	Enable control signal: when input is true, control data is sent and Offboard mode is entered; when input is false, control transmission stops and PX4 automatically switches to Loiter mode; automatic arming is triggered when the signal transitions from false to true
Mode	uint8	1×1	Control mode selection: 1 = manual mode, 2 = altitude hold mode, 3 = position hold mode, 5 = acro mode, 6 = stabilize mode
Ctrls	single	N×1 [to be confirmed]	Control signal vector, corresponding in order to roll, pitch, yaw, throttle, flaps, aux1~aux6 channel signals; all channel data ranges are [-1, 1]; dimension varies based on selected control channels

Output Ports

This module has no output ports.

Parameter Configuration

The following parameters can be configured in the Mask dialog box opened by double-clicking the module:

Parameter Name	Type	Default Value	Optional Values/Range	Description
Enable roll	bool	true	true/false	Whether to enable roll channel control
Enable pitch	bool	true	true/false	Whether to enable pitch channel control
Enable yaw	bool	true	true/false	Whether to enable yaw channel control
Enable throttle	bool	true	true/false	Whether to enable throttle channel control
Enable flaps	bool	false	true/false	Whether to enable flaps channel control
Enable aux1	bool	false	true/false	Whether to enable auxiliary channel 1 control
Enable aux2	bool	false	true/false	Whether to enable auxiliary channel 2 control
Enable aux3	bool	false	true/false	Whether to enable auxiliary channel 3 control
Enable aux4	bool	false	true/false	Whether to enable auxiliary channel 4 control
Enable aux5	bool	false	true/false	Whether to enable auxiliary channel 5 control
Enable aux6	bool	false	true/false	Whether to enable auxiliary channel 6 control
Auto arm	bool	true	true/false	Whether to enable automatic arming functionality
Auto block PX4	bool	true	true/false	Whether to enable automatic PX4 output blocking; when enabled, Simulink-generated controller directly controls the vehicle when isEnCtrl is true
Auto Loiter	bool	true	true/false	Whether to enable automatic Loiter mode switching; when enabled, PX4 output blocking is released and the vehicle switches to Loiter mode when isEnCtrl is false
Sample Time(s)	double	0.01	>0	Module sample time

Parameter Setting Notes

Control Channel Selection Parameters

Each control channel has an associated enable checkbox. Once a channel is selected, its control signal is included in the transmitted manual_control_setpoint message; unselected channels are omitted. The dimension of the input Ctrls vector matches the number of selected channels.

Auto arm

When enabled, the module automatically sends an unarmed command to PX4 when isEnCtrl transitions from false to true, eliminating the need for additional manual arming logic.

Auto block PX4

When enabled, the module automatically blocks PX4’s native control output when isEnCtrl is true, allowing the Simulink-generated controller to directly control the drone.

Auto Loiter

When enabled, the module automatically releases PX4 output blocking and switches PX4 to Loiter (hover) mode when isEnCtrl is false, ensuring the drone maintains hover after exiting Offboard control and preventing loss of control.

Module Characteristics

Characteristic	Value
Supported Data Types	double, single, uint8
Direct Feedthrough	Yes
Sample Time	Discrete
Code Generation Support	No

Data Communication Protocol

This module transmits manual_control_setpoint messages via the MAVLink protocol, communicating with the PX4 flight controller over UDP. By default, it uses the standard MAVLink port for data exchange, and the data format complies with the MAVLink specification.

1. The Mode input is of type uint8, corresponding to the following control mode definitions:
2. 1: Manual mode
3. 2: Altitude hold mode
4. 3: Position hold mode
5. 5: Acrobatic mode

6. 6: Stabilized mode

7. The Ctrls[*] input is a single-type vector, with each channel’s data range being [-1, 1], defined as follows:

8. roll: Roll channel; positive value corresponds to right roll (right side down)
9. pitch: Pitch channel; positive value corresponds to forward movement (nose down)
10. yaw: Yaw channel; positive value corresponds to clockwise yaw rotation when viewed from above
11. throttle: Throttle channel; corresponds to 0%–100% throttle; positive value corresponds to upward movement
12. flaps: Flap position
13. aux1–aux6: Auxiliary channels 1–6

Related Modules

Module Name	Description
VehicleStatus	Outputs status information of the PX4 flight controller
OffboardCtrlAPI	Implements PX4 Offboard mode control, directly controlling drone motion
SetPositionAPI	Implements sending of position control commands
VehicleCommandAPI	Sends MAVLink flight vehicle control commands

Usage Example

For related usage examples, refer to the following path:

[RflySim installation path]/RflySimAPIs/5.RflySimFlyCtrl/0.ApiExps/15.InputSourceAPI/Readme.pdf

Please refer to Readme.pdf in the above path for complete example descriptions and operational procedures.

Notes and Common Issues

• Initialization Sequence: This module requires the PX4 flight controller and RflySim simulation environment to complete startup initialization before it can function properly. Do not output the enable signal isEnCtrl = true before the simulation starts; otherwise, it may cause Offboard mode switching failure or the flight controller failing to respond to control commands.
• Channel Dimension Matching: The dimension of the input port Ctrls must match the number of control channels selected in the module parameters; otherwise, a dimension mismatch simulation error will occur. Control signal inputs must strictly remain within the range [-1, 1]; exceeding this range may cause abnormal control behavior in the PX4 flight controller.
• Avoiding Feature Selection Conflicts: The Auto block PX4 and Auto Loiter features must not be enabled simultaneously, as this will cause conflicts in the flight controller’s mode-switching logic, preventing normal switching between Offboard and Loiter modes.
• Mode Input Validity: The Mode port only accepts the legally defined values specified in the documentation (1/2/3/5/6); inputting undefined mode values will cause the flight controller to fail to recognize the control mode, resulting in no response or flight controller crash.
• Sample Time Matching: The module’s Sample Time parameter should match the control cycle of the PX4 flight controller (typically 0.004s–0.01s); an overly large sample time may cause delayed updates of control signals, leading to vehicle control instability.
• Switching Logic Requirements: When isEnCtrl transitions from false to true, ensure the vehicle has already entered a state ready for arming; otherwise, the automatic arming function may fail. If automatic arming is not required, please deselect the Auto arm parameter option.

Changelog

• v4.1 (2024-08-07): Initial release. Implements overriding of RC manual control signals by resending manual_control_setpoint messages. Supports custom control channel selection, Auto arm, Auto block PX4, and Auto Loiter features, and provides multi-mode control with multi-channel control signal inputs.
